Product overview
For pallet transport and stacking, with a 1500 kg rated load and a customizable 3000 mm standard lift.
Uses laser navigation and a steer-drive wheel, with ±10 mm positioning accuracy.
Includes safety lidar, conductive rubber and audible/visual warnings, with industrial Wi-Fi and interfaces reserved for MES, WMS, ERP and central dispatch.

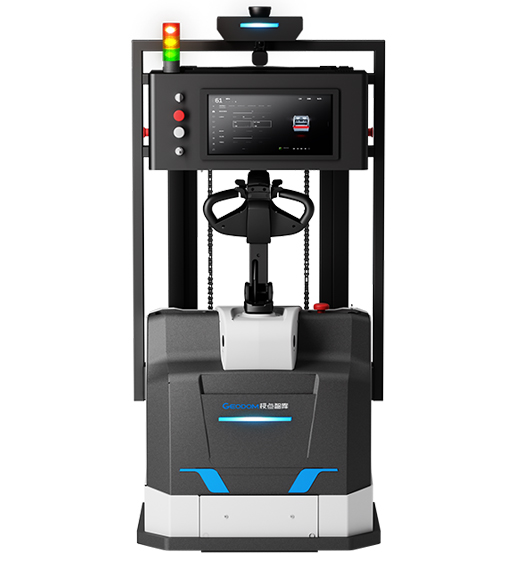

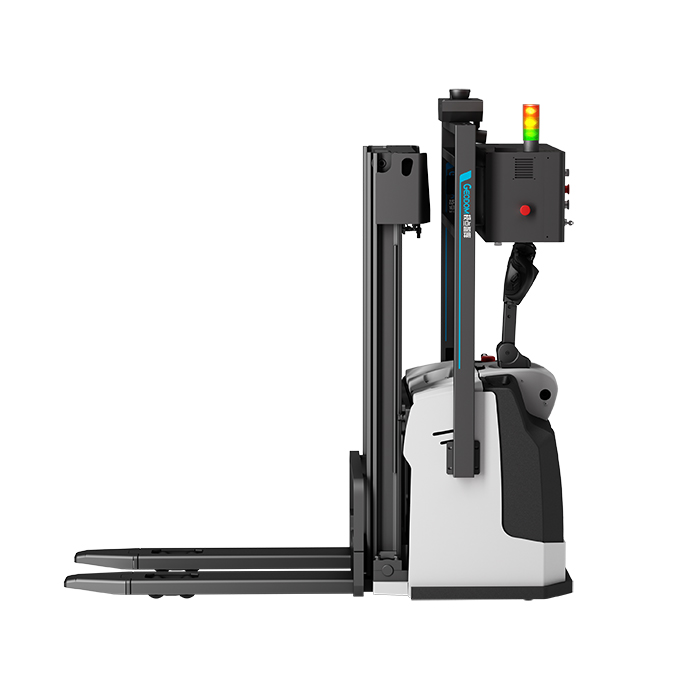

Product views
Product highlights
- Autonomous navigationLaser navigation with ±10 mm positioning accuracy.
- Safety equipmentSafety lidar, contact sensor and audible/visual warnings.
- System interfacesInterfaces reserved for MES, WMS, ERP and central dispatch.
Technical specifications
Scroll horizontally to view all specifications.
| Parameter | Specification |
|---|---|
| Standard lift height (mm) | 3000(customizable) |
| Rated load (kg) | 1500 |
| Dimensions (L × W × H, mm) | 2350*1080*2254 |
| Aisle dimensions (1200 × 1000 mm pallet, mm) | 3200 |
| Navigation | Laser navigation |
| Positioning accuracy (mm) | ±10 |
| Non-contact safety sensor | Safety lidar |
| Contact safety sensor | Conductive rubber |
| Audible and visual warning | Audible and visual signals |
| Wireless network | Industrial Wi-Fi |
| System interfaces | Interfaces reserved for MES, WMS, ERP and central dispatch |
| Fork length (mm) | 1200(customizable) |
| Lowered fork height (mm) | 90 |
| Minimum ground clearance (mm) | 30 |
| Unloaded travel speed (m/s) | 1.2 |
| Travel mode | Steer-drive wheel; forward, reverse and curved turns |
| Gradeability | 5% |
| Battery type | Lithium iron phosphate |
| Battery voltage | 24V |
| Battery capacity | 200Ah(customizable) |
| Charging | Automatic online charging / manual charging |
